Forum: General Discussion - Topic: Help with turntable setup, what i need?

I just bought 2 pairs of stanton t60 turntables and a stanton M.201 Mixer. I want to be able to connect the turntables to my computer so that i can play music files from the pc onto the turntables.

I'm 90% sure I don't have a soundcard capable of this setup so what will i need to get? Also will i need to get some time coded vinyls? What else will I need?

Thanks

Yeah youll need a soundcard like a MAYA44 and you can use Serato timecodes. Get those and report back, we'll go from there....

Huey

okay thanks for that. im in the process of getting the 44 and some vinyl now. my only other concern is playback through my speakers. im only just learning to dj so it will all be done in my bedroom and i was hoping on just connection the mixer to my computer speakers. of course these are aux connected so if i was to get an aux to rca cable would that work?

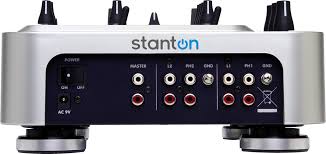

http://t3.gstatic.com/images?q=tbn:ANd9GcTefzicKxyk65aPeCe5qLH2Ewy_nHnHco8EgwaZ7lQHJBXOBKqK

would it simply just go into the master slots?

maya 44 is not recomended soundcard - It's old and not so good .
Audio6dj (Native instruments) is so far better

Yes...you will need a total of 5 RCA cables and a ”y” cable. The y will consist of III female connections. 1.8 and red and white RCA. That's how you will connect your computer monitors to the master out on your mixer.

Iv read many good reviews on the maya 44 and a lot of people use them. plus its about $150 cheaper then the audio6dj..




Sounds right. Just to make sure, 4 of the RCA cables will be from the tables, and the other last one will be from the AUX to RCA connector? Where does the 'y' cable come into it? Im guessing the AUX to RCA cables then plug into the 'y' cable? Yes, no?

Thanks

I had one maya44 & I know is cheaper but is not a good soundcard . It works , but is not a good soundcard -

1 for each turntable, 1 for each deck ”out” on the sound card. The turn tables will plug in each "in" on your sound card and the outs will plug into each in as if you were plugging up your turntables. Once you get you sound card, you will better understand.

1 for each turntable, 1 for each deck ”out” on the sound card. The turn tables will plug in each "in" on your sound card and the outs will plug into each in on your mixer as if you were plugging up your turntables. Once you get you sound card, you will better understand.

Sorry about the double post, my cell got out of wack

Okay too easy. And the USB from the soundcard will feed the mp3s to the tables/mixer? Thanks so much for your help

You will undertand easier when you get your equipment.

I use the esi maya 44 and i am yet to have a problem, it works perfect for me.

Basically you plug you maya 44 into you laptop with the usb, you connect both turntables to the "in" on your maya 44, then you connect 2 rca cables from the maya44 "out" to the left and right channel on your mixer.

The rest of the setup is done in the software itself, virtual dj receives the signal from the timecode and controls what you see on your screen, then virtual dj will output your sounds (mp3s) to the "out" on your maya 44 which is deck 1 and deck 2 and if wired up correctly will and then you recieve to mp3s to your mixer.

I have managed to find out a old video i made for some stuff i sold on ebay. I started out the cheap way because i didnt want to spend a whole lot of money just incase i didnt like the whole timecoded vinyl. But i still use the the maya 44 as like i said before it has never yet failed on me and i have been using it for around 3 years.

This is what it should go like when you get it all working.

http://youtu.be/TCHPg-aGvbg

Thats great thanks Rob!

I have all my equipment set up correctly using a Mix Vibe U-Mixx 44 Soundcard my mixer works fine with the software but i cannot get my computer to recognize my turntables when I got into config it just says relaxed like theres no signal... not sure what im doing wrong

Hi me again, turns out I cannot for the life of me find a store that will ship me a Maya 44 to Australia for less then $100..

So iv been looking at other sound cards. I'm just wondering how many outputs and inputs I will need?

Would the Numark DJ I/O satisfy? https://www.storedj.com.au/products/NUM-DJIO
Or can anyone recommend anything?

Thanks

Sorry, DJIO is not suitable for timecode use because it lacks the necessary inputs for the timecode signal. It's designed/intended for mouse/keyboard and MIDI controller users only.

Have a search on Google for the Hercules DJ Trim. This is also available as an all-in-one package the includes timecode vinyl records and CD's and VirtualDJ LE (You can optionally upgrade from this to the full Pro at a discount.)

Please see:

http://www.virtualdj.com/wiki/Timecode%20Requirements.html

Also:

http://www.virtualdj.com/wiki/How%20do%20I%20configure%20my%20timecode.html

So i know the rane serato vinyls will work but i was wondering if m-audio torq vinyls would work with this set up? https://www.storedj.com.au/products/MAU-TORQVINYLBLK

Cheers
