Hardware Manuals


Numark - NV

SETUP


Firmware & Drivers


Windows & Mac
No drivers are required to be installed and no firmware update is currently available. Numark NV is a USB Class compliant device, however always check the Numark website for any updated notifications http://www.numark.com/product/nv

Simply connect the unit’s USB socket with a USB port of your computer, power on and let your Operating system to install the necessary drivers.

VirtualDJ 8 Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

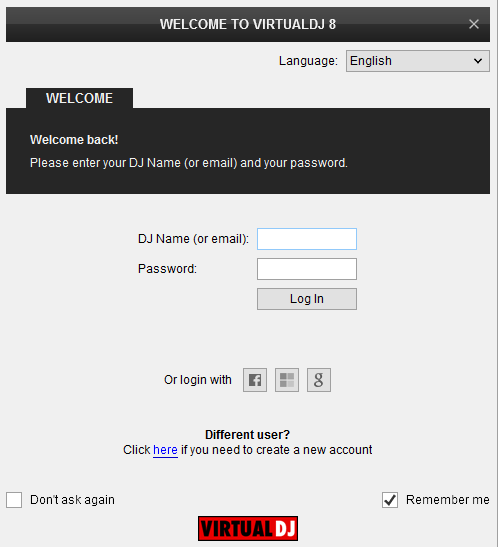

Once VirtualDJ 8 is opened, a Login Window will appear. Login with your virtualdj.com account’s credentials.

A Pro Infinity, a PLUS or a Pro Subscription License is required to use the Numark NV. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
http://www.virtualdj.com/buy/index.html

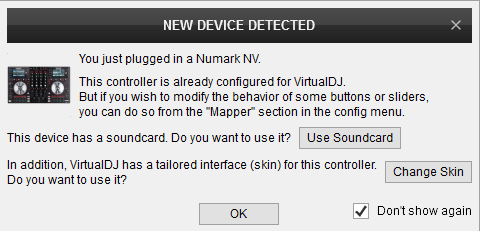

A detection window will appear next verifyying proper connection.

Click on the Use Soundcard button in orderVirtualDJ to apply the pre-defined audio configuration (speakers need to be connected to the rear side of the unit in this case)

Click on the Change skin button in order the 4 Decks default skin of VirtualDJ to be loaded.

Click to OK

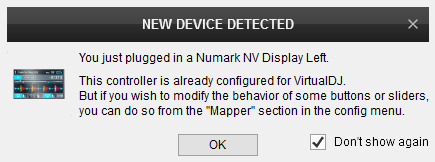

An addtional detection window will appear next to verify the proper connection of the 2 available LCD Screens.

Click to OK


The unit is now ready to operate.


MIDI Operation


The unit should be visible in the CONTROLLERS tab of Config as 3 devices (Numark NV for the main unit and 2 more for the Left and Right LCD Displays) and the “factory default” available/selected from the Mappings drop-down list for all 3 of them.



The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.
Find more details at http://www.virtualdj.com/wiki/VDJ8script.html

Note : If the LCD screens are inverted (i.e. the Left LCD screen shows the info of the right deck and vice versa), make sure the Left Display is assigned to Automatic (1,3) and the Right Display is assigned to Automatic (2,4).

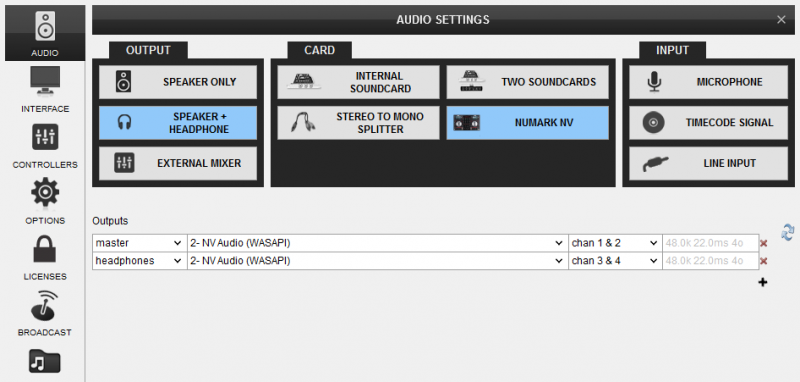

AUDIO Setup


The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that.



See also Inputs & Recording.





For further software settings please refer to the User Guide of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
Layout
