Hardware Manuals


Numark - NS6 II - Layout

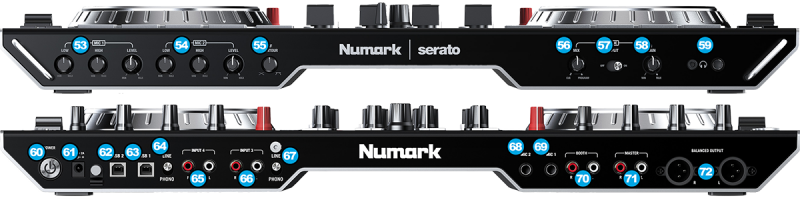

Front - Rear





  1. MIC 1 EQ: Adjust the equalizer for mic 1 audio input.
    (Hardware operation, not visible inside VirtualDJ GUI)

  2. MIC 2 EQ: Adjust the equalizer for mic 2 audio input.
    (Hardware operation, not visible inside VirtualDJ GUI)

  3. CROSSFADER CURVE ADJUST: Adjusts the curve of the crossfader

  4. HEADPHONES MIXING: Adjust how the Channels and the Master Output blend at the Headphones Channel.

  5. HEADPHONES SPLIT: Adjust the volume of the Headphones Channel

  6. HEADPHONES VOLUME: Adjust the volume of the Headphones Channel

  7. HEADPHONES CONNECTOR: Connect your headphones. Both sizes (3.5mm and 6.35mm ( 1⁄4 in)) are offered.

  8. POWER SWITCH: Turns on/off the power on the device. Please turn on the device only after doing and securing all connections on the back.

  9. DC INPUT: Connect the supplied PSU

  10. USB 2 CONNECTOR: Use a standard USB cable to connect NS6II with your computer.

  11. USB 1 CONNECTOR: Use a standard USB cable to connect NS6II with your computer.

  12. LINE/PHONO SW 4: Switches input 4 between line and phono signal levels.

  13. INPUT 4: Connect an analog device that will be routed on channel 4 of NS6II mixer.

  14. INPUT 3: Connect an analog device that will be routed on channel 3 of NS6II mixer.

  15. LINE/PHONO SW 3: Switches input 3 between line and phono signal levels.

  16. MIC 2 INPUT: Connect a mic on the NS6II mixer. You can use only a Jack (TRS) connector. Please note that MIC inputs are hardware controlled.

  17. MIC 1 INPUT: Connect a mic on the NS6II mixer. You can use only a Jack (TRS) connector. Please note that MIC inputs are hardware controlled.

  18. BOOTH OUT: Booth signal output (RCA – Unbalanced). The strength of the output signal is controlled by “BOOTH VOLUME” knob (14) on the mixer section. Use it to connect your booth speakers, or an amp that needs different sound output level than master output.

  19. MASTER OUT 2: Master signal output connectors (RCA – Unbalanced). Use it to connect with another mixer, or consumer grade amplifier.

  20. MASTER OUT 1: Master signal output connectors (XLR – Balanced). Use this to connect on your pro grade amplifier or self-powered speakers.
