Native Instruments - Kontrol S4 MKII

INSTALLATION


Firmware & Drivers


Firmware: Firmware: Update the firmware of the unit to the latest version from Native Instruments

Drivers: Install the latest drivers from Native Instruments

VirtualDJ 8 Setup


Download and install VirtualDJ 8 from our Downloads Page
(in case you have not done already)

Once VirtualDJ 8 is launched, a Login Window will appear. Login with your virtualdj.com account credentials. A Pro Infinity or a Pro Subscription License is required to fully use the Kontrol S4MK2

Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
Buy a license


A detection window will appear next, verifying that the device is properly connected.

Click to OK.


The unit is now ready to operate.


Advanced Setup



MIDI Operation

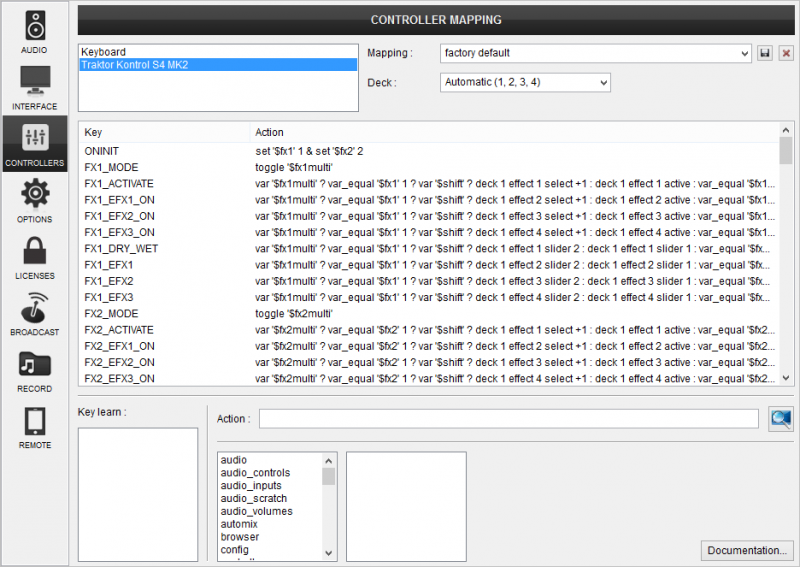

The unit should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.
Find more details at
VDJ Pedia


AUDIO Setup
The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. Alternative Audio setups can be applied in the same window.


For further software settings please refer to the Manuals of VirtualDJ 8. Layout
