Topic: Waveforms and BCG
I would like to be able to highlight better the first beat of 16 on the horizontal waveform.

Right now, if I use
<grid size="1" mainsize="7"
, mainsize controls the size of the 1:4 beats. The 1:16 can also be seen. I think it is twice the size of the 1:4.

Is it possible to independantely control that size, or better yet to change the color or the height?

Posted Sun 08 Jun 25 @ 12:33 pm
Currently, no.

Thanks

In case anyone is interested, the status changed on this. Locodog wrote in another thread:

locoDog wrote :
BUILD 8643 (2025-06-16) Introduces a minor addition for Scratch & Rhythm wave grids
-grid phrasesize and phrasecolor parameters for skin scratch waveform
-grid phrasewidth for skin rhythm waveform

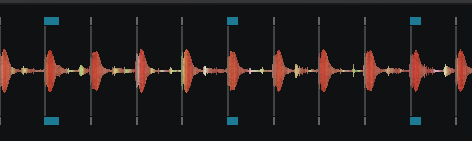

example from my scratch wave grid
<grid size="1" mainsize="4" phrasesize="4" height="8" pos="-10" color="darkgray" maincolor="deckcolor" phrasecolor="white" mirrored="true" shapepos="-13" shapemirrored="down"/>

[IMAGE1]

That was your wish granted.
Take a bit of pride that your wish improved the program just a little bit, I'm using it and I'm sure the skinners will too.
As always credit to the dev team for listening and making it happen quickly [I think it was a couple of days in this case]

You are right. It helps a product if there is good communication between the customer base and the development team too.

Also, it does motivate me to try to give clear and constructive critism when I can. And to follow more closely the release logs!!

That's why my original answer was "Currently, no" ;)
