Topic: [NEW] V8 Skin - OrangeJuice - Page: 1

This part of topic is old and might contain outdated or incorrect information

@mods: i forgot the skinname in threat title. Can you please add "OrangeJuice"?

i saw the skin "Controller by DennYo" and loved it ;-)
started as an study project for my own use, i began to change buttons and visuals. The skin got a litte bit 3d and walk away from its flat look.
I wrote many parts of the code new in <defines> and shrunk the script.

i went back from the traditional color design like red/blue and use those colors only in a few parts (Deckname or waveform colors)

Beside the new gfx, there are many new features added:
- new Topzone with prelisten & sandbox inside, to create space for a bigger browserzone

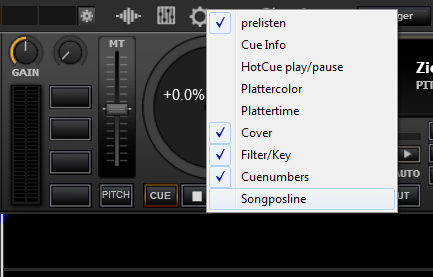

- new setup inside the topzone
- seems to be the first skinrelease with a permanent waitlist / playlist.
Please aktivate "showHorizontalSideList" and read the readme.pdf inside the zip for config the 2nd Browser for use as an waitlist / Playlist
- new Waveform "2 in one row" show both waveforms side by side with overlapping beatgrids
- you can now toggle between 3 x FX Mode and 1x Fx Mode
- you can switch the cue list with a stored loop list in 2 layers 1-4 & 5-8
- move cbg with <-> near the wheel
- some new center panels for control Automixmode and Samplermode

i ask DennYo aka Denny F.. He gave me the permission to publish this skin

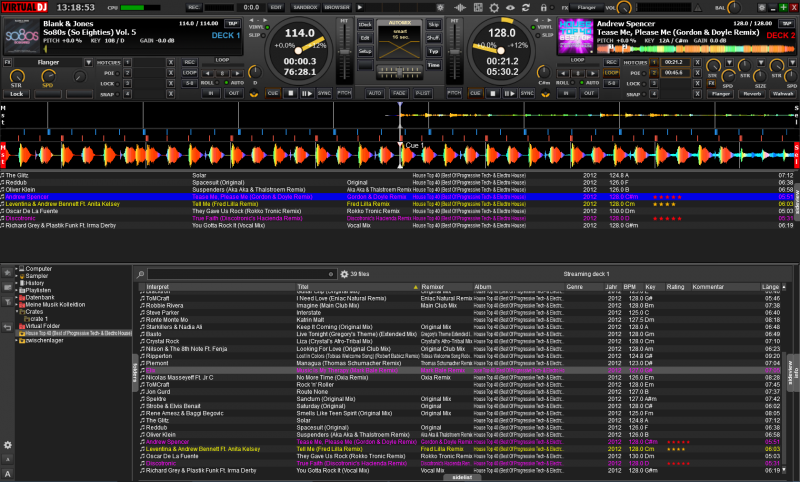

Screenshots:

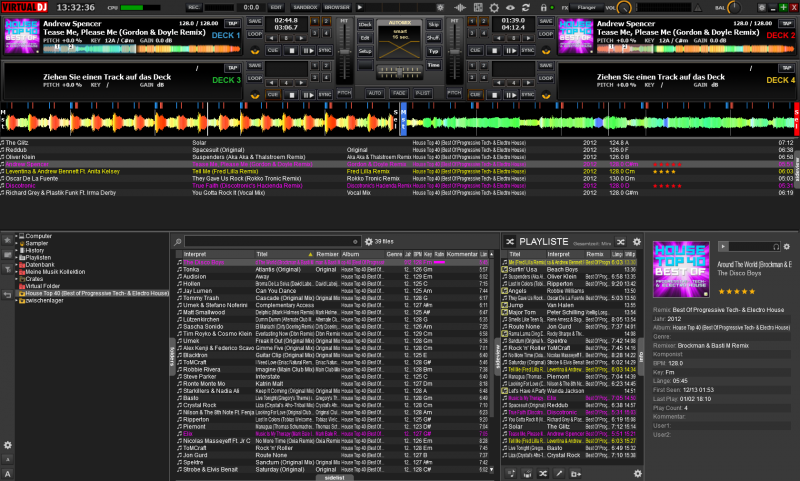

permanent waitlist / playlist as you like

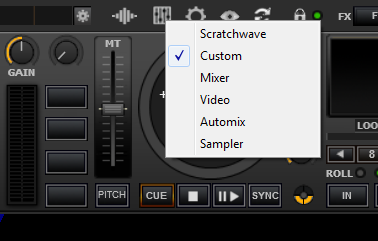

Center Panel "SAMPLER"

Center Panel "Automix"

New 1-Row - Waveforms side by side with overlapping BeatGrid


Posted Wed 07 Jan 15 @ 7:58 am

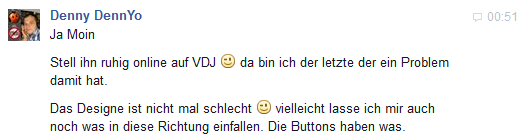

DennYO gave the permission to publish this skin (sorry, its german....)


Posted Wed 07 Jan 15 @ 8:20 am
love what you did to the AM panel .... nice ... very inspiring.


Posted Wed 07 Jan 15 @ 10:09 am
raypitman wrote :
love what you did to the AM panel .... nice ... very inspiring.

that was my intention....together as the first release with more than one Browser. Hope to get so some new, undocumented Info from other skinner / Atomix


Posted Wed 07 Jan 15 @ 10:16 am
Very nice, I like ;o)


Posted Wed 07 Jan 15 @ 4:24 pm
Can the wave be hidden??

Never understood the need for these full screen waves, other then that it look good.


Posted Thu 08 Jan 15 @ 6:05 pm

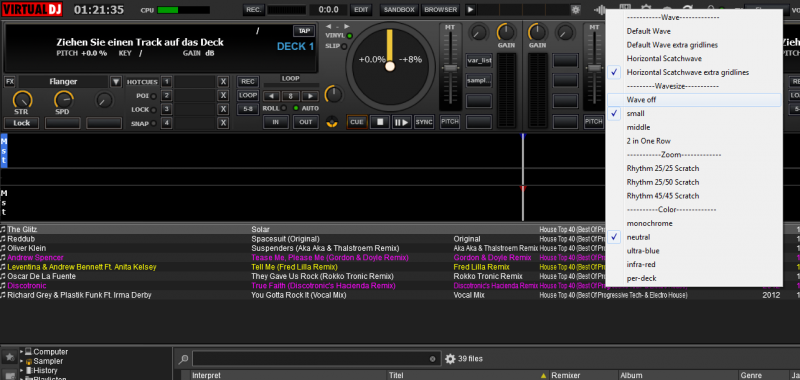

yes, one option is to hide the waves (similar to the original skin by DannYo)


Posted Thu 08 Jan 15 @ 6:20 pm
its not available yet..
please let us know when !


Posted Fri 09 Jan 15 @ 4:57 am
status: pending...... sorry


Posted Fri 09 Jan 15 @ 7:14 am
update:

i need some "testing" help

i just found out, that my included Waitlist is not correct in every case of your native screen resolution.
In my Beta are 3 new variants:

1. SafeMode:
original browser
+ fits all
- has this very big header....

2. Variant with right Sidelist/Automix;
built your waitlist with the Sidelist/Automixlist on right side of Browser
+ has its own column header and individial columns
- litte bit smaller as 3. because of the separate Column header

3. Variante with horizontal Sidelist as waitlist
- Option "showHorizontalSideList" must be manual set to 'yes' (action settings 'showHorizontalSideList' yes does not work...maybe a bug)
- no individual columns & header. Use the same column as the 2nd Browser "song" section
+ 1-2 more rows as 2.

my problem:
It could be (2. and 3.) that the Waitlist will not be drawed at correct place. It has to be moved a few pixel.
For this case a scripted a few variants -9 / -6 / - 3 to +9px.

it would be fine, if someone loads the Skin, activate both waitlists an tell me, if one of these variants could solve the problem and offer a correct waitlist. I only has a native 1600x1050 screen. This works perfect.

please leave a message here or per mail to info (at) dj-nice.net
you will get a dropbox link or the skin.xml per mail

thanks,
Alex


Posted Sat 10 Jan 15 @ 11:27 am
djnice :o) wrote :
action settings 'showHorizontalSideList' yes does nor work...maybe a bug


The horizontal sidelist doesn't show until you restart VDJ (when you change it in config) so a button with the action would be the same - require restarting.



Posted Sat 10 Jan 15 @ 11:40 am
mmmh...... i think, i did a test right as you wrote..... I will try it. maybe there was a syntax mistake


Posted Sat 10 Jan 15 @ 12:02 pm
is was a syntax problem.......in settings.xml stands yes/no but as an action you have to take on/off
It work now.
New Version 2.4 in Dropbox


Posted Wed 14 Jan 15 @ 5:26 pm
where I can download the skin?


Posted Wed 14 Jan 15 @ 6:50 pm
As mentioned earlier in the thread, send dj nice a message.

The skin hasn't been approved for download by Atomix yet.


Posted Thu 15 Jan 15 @ 8:38 am


Posted Thu 15 Jan 15 @ 8:57 am
As djnice said before, there is a problem with the middle browser - it is too wide for the screen.

It looks as if djnice has deliberately made the browser too wide in order to hide some of the tabs.

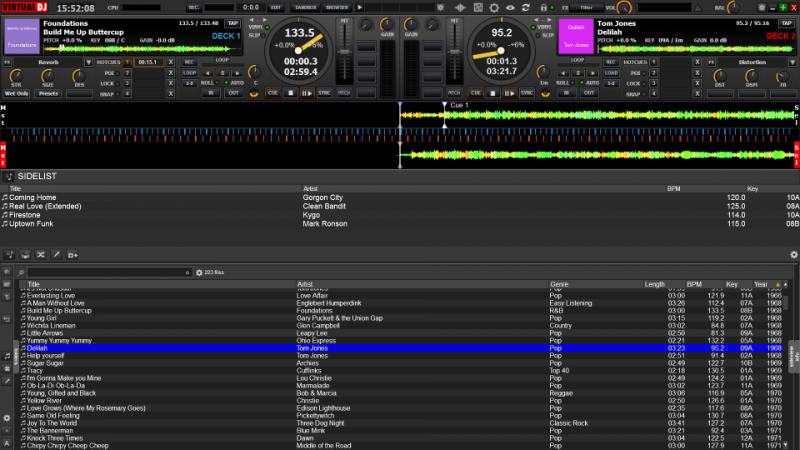

djnice, if you wanted to have only the sideview in the top browser area, you could use <sideview> to show just that part (see picture).

Also, right clicking the browser button for "middle browser on/off" doesn't work when the waveform is off.



Posted Thu 15 Jan 15 @ 9:33 am
thanks!

@groovindj
groovindj wrote :
As djnice said before, there is a problem with the middle browser - it is too wide for the screen.
It looks as if djnice has deliberately made the browser too wide in order to hide some of the tabs.

correct Folders & info should be nearly hidden

groovindj wrote :
djnice, if you wanted to have only the sideview in the top browser area, you could use <sideview> to show just that part.

interesting.....but i found nothing about it in the SDK. Did you know the correct way to use it?

groovindj wrote :

Also, right clicking the browser button for "middle browser on/off" doesn't work when the waveform is off.

i forgot ;-)


Posted Thu 15 Jan 15 @ 9:49 am
djnice :o) wrote :

found nothing about it in the SDK. Did you know the correct way to use it?


Complain to djtouchdan about that! You can just use sideview instead of browser - result shown in picture.

So the code for that section is now:
<sideview>
<pos x="+0" y="+0"/>
<size width="1366" height="160"/>
</sideview>





Posted Thu 15 Jan 15 @ 10:03 am
the <SideView> parts just uses a very oversized header/footer. Seems to be 1/3 of my upper browser space.
The are only 6,25 rows in playlist left. With an overlapping (bus causes also scaling problems) of the footer i will get 8,5 rows.
My variant offers 12 rows in playlist!

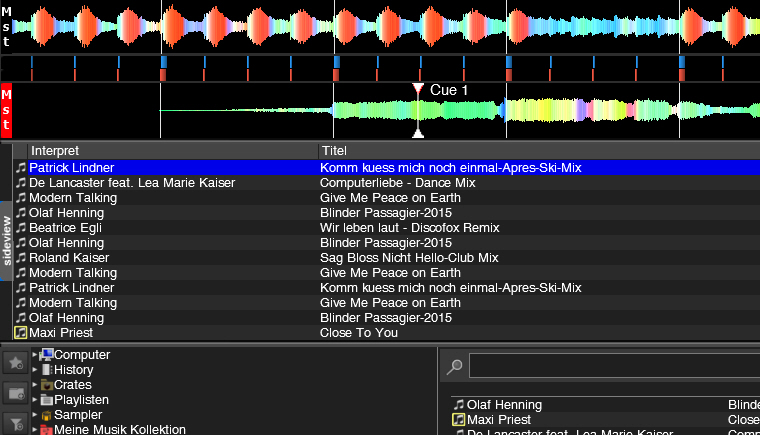

<sideview> variant @1050p

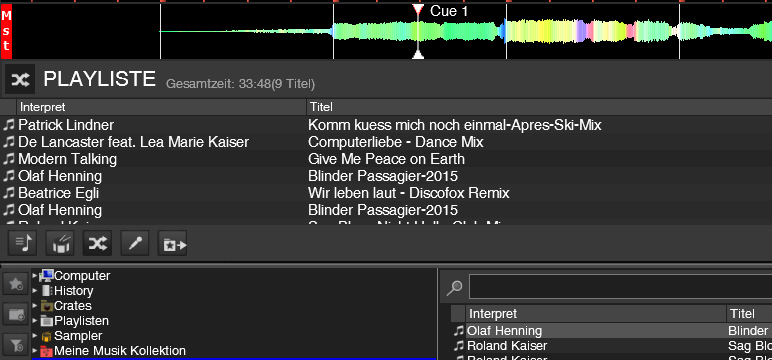

my variant @1050p


Posted Thu 15 Jan 15 @ 11:18 am
