Hardware Manuals


Rane - Seventy - Layout

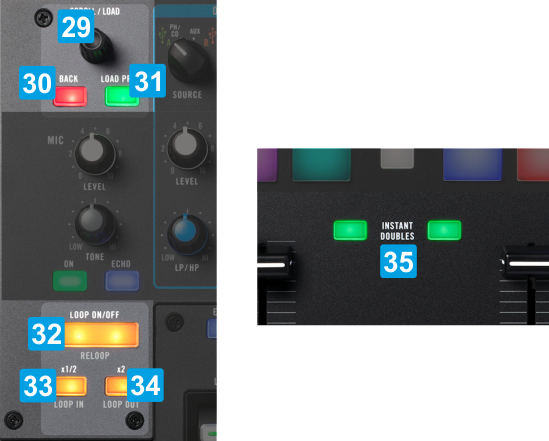

BROWSER & LOOP CONTROLS





KEY

ACTION

SHIFT (SECONDARY) ACTION

29 SCROLL/LOAD
Scroll through files/folders.
Push to load the selected track to Left/Right Deck
Scroll through files/folder.
Push to toggle Browser focus between Songs list and Sideview
30 BACK
Sets focus to Folders list. If focus is in Folders list, open/close sub-folders
31 LOAD PREPARE
Adds the selected track from the Songs list to the Automix list
Cycles through the tabs of Sideview (Automix,Sidelist,Karaoke, Sampler and Shortcuts)
32 LOOP ON/OFF
Enable/disable a Loop of the selected beats size
Enables the last triggered loop (reloop)
33 LOOP x 1/2
Halves the size of the loop
Set the Entry (In) point of a manual loop. When in loop, enables the Loop In Adjust mode and a jogwheel can be used to fine-adjust the Loop In point
34 LOOP x2
Doubles the size of the loop
Set the Exit(Out) point of a manual loop. When in loop, enables the Loop Out Adjust mode and a jogwheel can be used to fine-adjust the Loop Out point
35 INSTANT DOUBLES
Clones the track of the Left/Right Deck to Right/Left Deck including it's playing status, position and tempo


Pads
