Hardware Manuals


Pioneer - DDJ-SB2

INSTALLATION



Firmware & Drivers


Firmware: Update the firmware of the unit to the latest version from http://www.pioneerdj.com/en/support/software/ddj-sb2/#firmware-update

Drivers (for Windows only): Install the latest ASIO drivers from http://www.pioneerdj.com/en/support/software/ddj-sb2/#drivers
No drivers are required for Mac OSX computers

VirtualDJ Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)


Once VirtualDJ 8 is launched, a Login Window will appear to enter your virtualdj.com account credentials.

A Pro Infinity, a Plus or a Pro Subscription License is required to fully use the Pioneer DDJ-SB2 Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.

http://www.virtualdj.com/buy/index.html


A detection window will appear next, asking to use or not the pre-defined audio setup with the built-in sound card of the DDJ-SB2.
Select “Use Soundcard” in order VirtualDJ to use the pre-defined DDJ-SB2 audio configuration.
Select “Change Skin” to load the Default 4 Decks skin instead of the 2 Decks one.

Click to OK.





The unit is now ready to operate.

MIDI Operation


The unit should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.
Find more details at http://www.virtualdj.com/wiki/VDJ8script.html

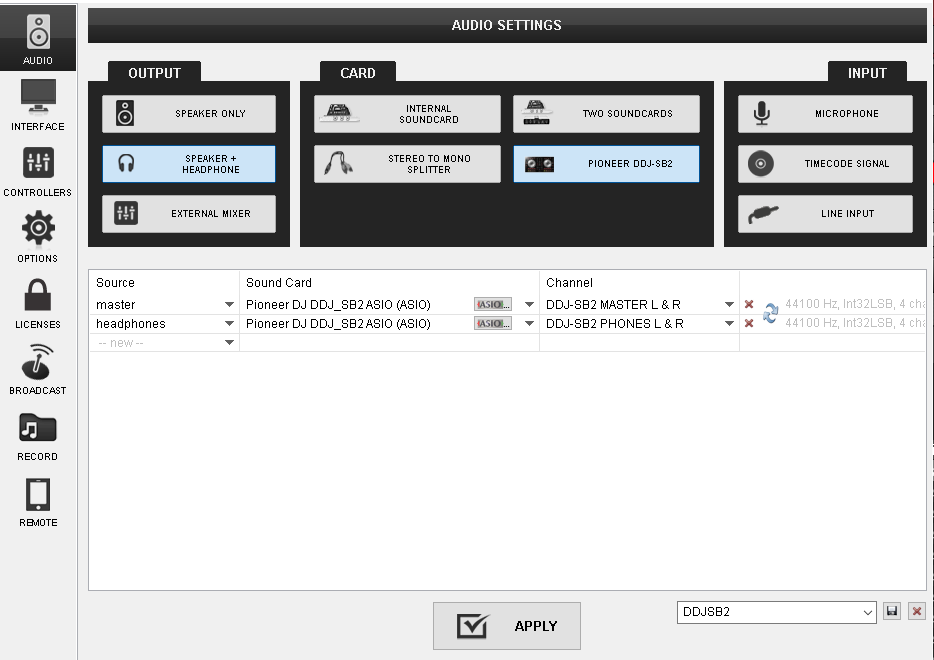

AUDIO Setup


The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. When the pre-defined audio configuration is selected, speakers need to be connected to the rear Master Output connection (RCA cables) and your Headphones plugged to the rear Headphones socket of the DDJ-SB2.

Alternative Audio setups can be applied in the same window.






For further software settings please refer to the User Guides of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
