Native Instruments - Kontrol S5 - Layout

PERFORMANCE PADS

The 8 Pads offer various functions, depending on the selected Pads mode. Each of the 4 Pad mode buttons offers 2 individual modes. One with the press of the mode button, and an additional mode by holding SHIFT. The 8 modes represent a page of the PADS section on the default VirtualDJ GUI.

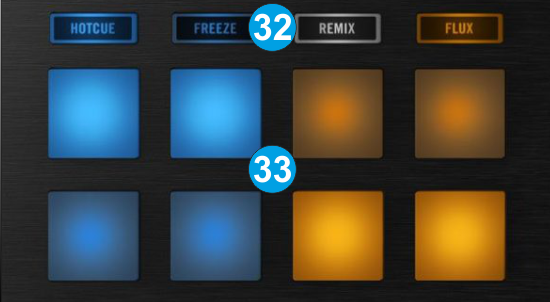

32. PAD MODE. Press any of the 4 available Pad mode buttons to set the Pads to one of the following modes

    Primary modes :
    [HOTCUE] : Hotcues page
    [FREEZE] : Loop Roll page
    [REMIX] : Sampler page.
    [FLUX] : Stems+FX page

    Secondary modes :
    SHIFT+[HOTCUE] : KeyCue page
    SHIFT+[[FREEZE] : Slicer page
    SHIFT+[REMIX] : BeatJump page
    SHIFT+[FLUX] : Stems page

    All the above pre-assigned pages can be changed. See VirtualDJ Manual

    Note : When a primary mode is selected, hold this mode button down and then use the LOOP Encoder [23] to adjust the 1st Parameter (if available) of the selected Pads page.


33. PADS. The 8 RGB Pads offer different functionality depending on the selected mode.


Read further details about Pads in the VirtualDJ manual
