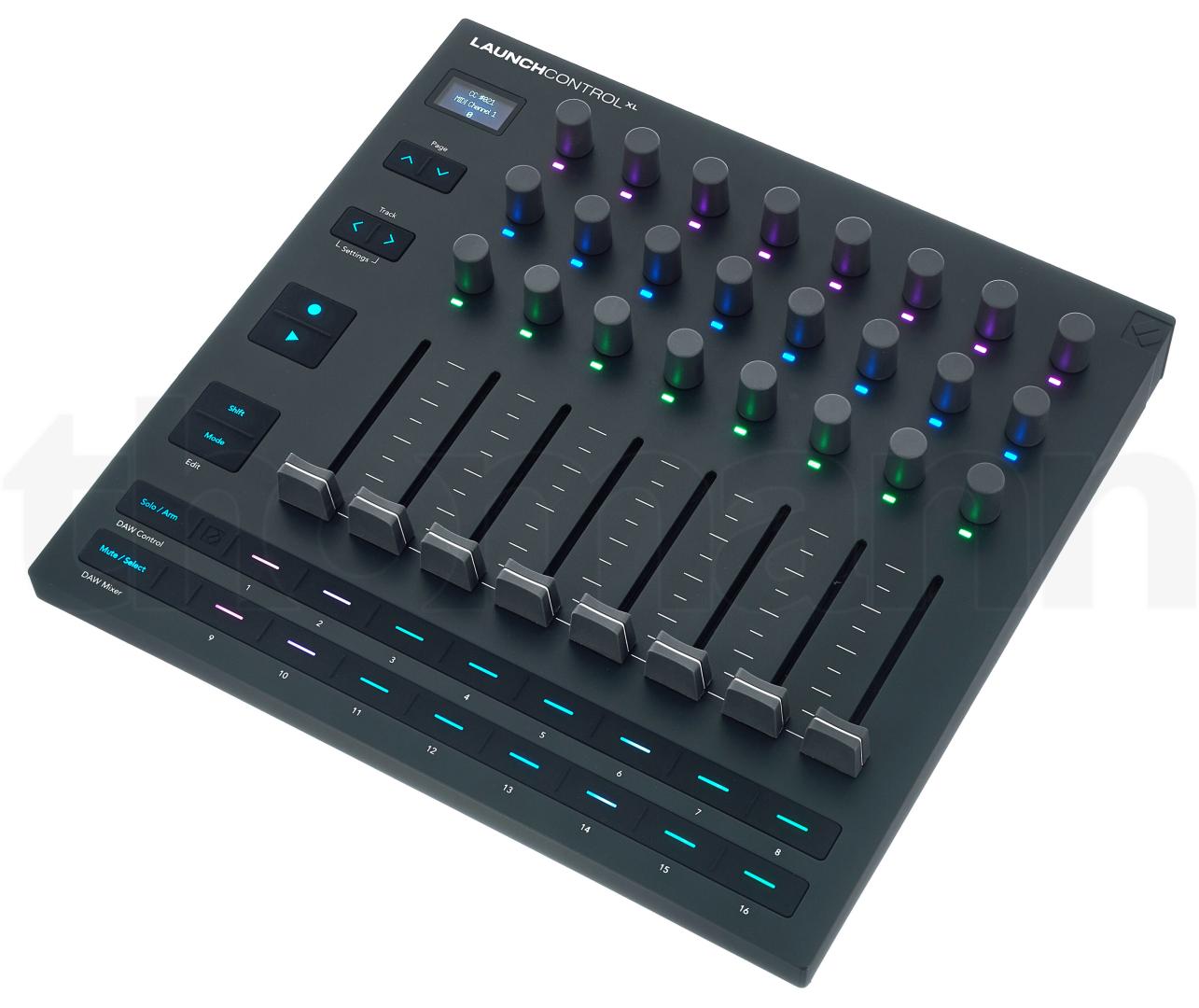

Topic: Novation Launchcontrol XL 3
Hi all!

I have one on the way and I had not realized that it's not yet supported. Is it someting underway?

If not, anyone has worked with it that could share the required files?

Thanks!

Posted Fri 28 Nov 25 @ 1:47 am
No, it's not yet planned, but we could add at some point, especially if you re willing to help with remote assistance sessions.

btw, it's not that it's not yet supported. Even if it was, you couldnt use (after the first 30 days of Trial ) the device with your Plus license which is for another controller.

I was aware of my licence, thanks anyway for reminding me. It's just that I figured that part was already supported :)

I am willing to help for the mapping and the other files for the Launchcontrol. If we are in contact, I also have suggestions for the FLX4 and something else I will PM you about.

Ok, found some useful info in their manual. Will create some test Mapping files and will email you once i have them ready to test.


Hi!

While waiting for a potential Launcontrol XL3 device defintion, I started building a simple one. I have trouble sending back info to the device.

Le's put an exemple. A 360 rotary encoder is used to control deck 1 gain.

In the definition file:
 <slider cc="0x0f" name="D1-GAIN" autoled="true" deck="1" zerorange="1" channel="2"/>


In the mapping file:
 <map value="D1-GAIN" action="deck 1 gain" />


If I use a midi app and send on Channel 3, the value 64 with CC 0x0f, both the LED intensity and the actual value of the pot will be modified correctly.

I didn't manage to achieve the same thing within VDJ. I tought autoled would generate a LED_D1-GAIN that I could use but I don't see it. I also don't know what actions I should use with that key to to send the proper midi message.

Can someone advise me?

Thanks!
