Pat_DJ
Hey all,
I'm thinking of building myself a abs pipe Facade.
What do you guys think about something like that? I was thinking of getting a white and a black cloth.
With the white one, ill be able to do some uplighting in it.
Im also thinking about making 2side facades for my Speaker/light stands.
Any reviews about those too?
Thanks,
Pat
I'm thinking of building myself a abs pipe Facade.
What do you guys think about something like that? I was thinking of getting a white and a black cloth.
With the white one, ill be able to do some uplighting in it.
Im also thinking about making 2side facades for my Speaker/light stands.
Any reviews about those too?
Thanks,
Pat
Posted Thu 12 Apr 12 @ 9:14 pm
yk23
I built one out of a bunch of 2x2 boards, slotted the wood with a table saw, and used and 4x8 Sheets of 4mm Colorplast corrugated plastic($20). I am now using SMD 5050 RGB Waterproof 60 per meter LED strip lights($40 ebay). I think its better then fabric as it can be wiped down with a towel. It weighs maybe 15 lbs folded up. You can get a DMX controller for the strip light on ebay for $10
David aka DJ Kavika

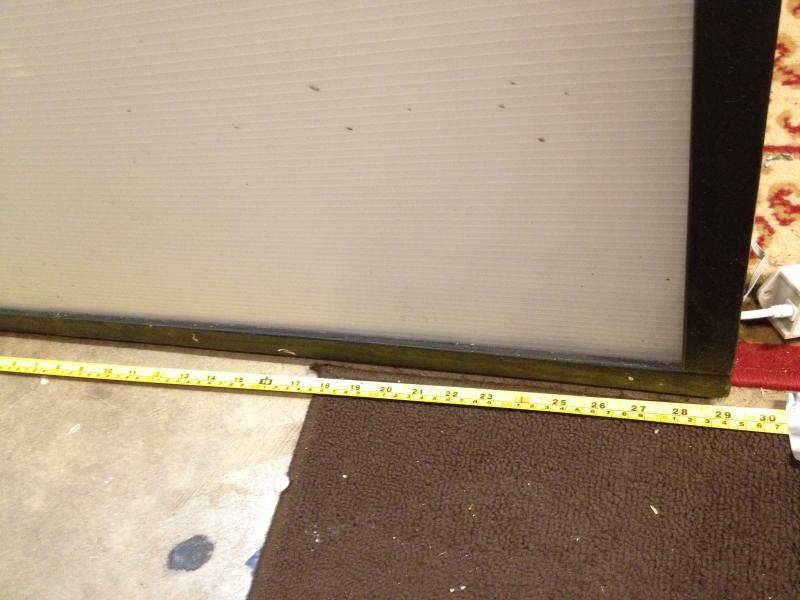

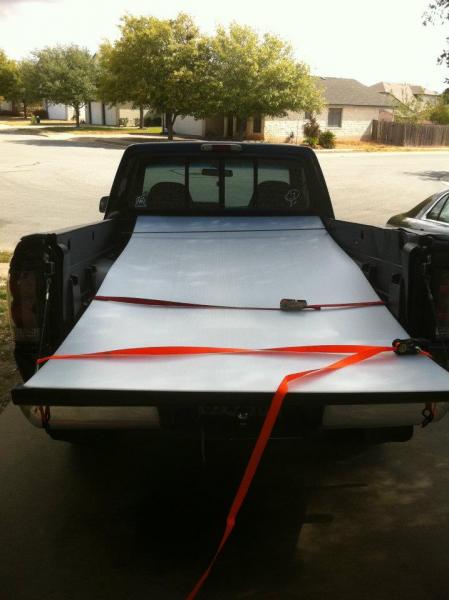

Corrugated Plastic:
Slotted Wood
1st frame built
Initial Test fit around my table

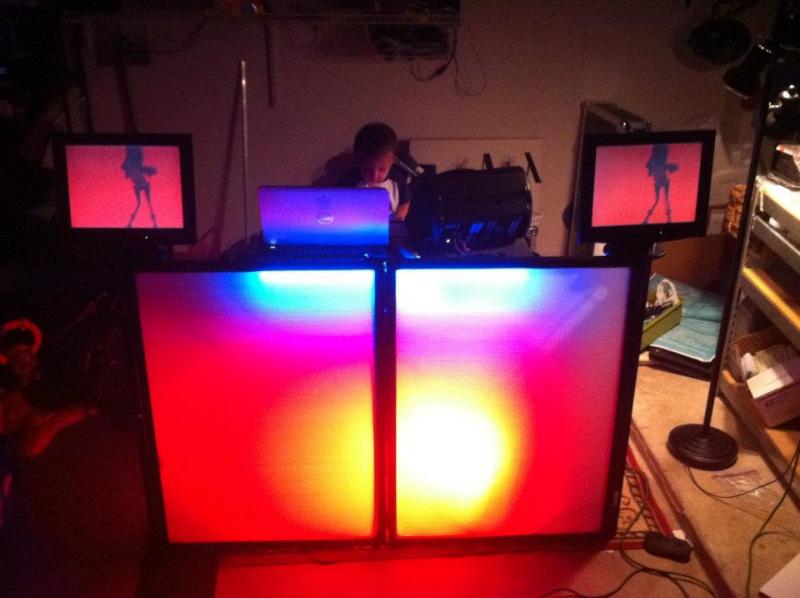

Added LCD Monitors- Using 2 Chauvet ColorPallets
LED Strip Lights DMX Controlled
Rear View
David aka DJ Kavika
Corrugated Plastic:
Slotted Wood
1st frame built
Initial Test fit around my table
Added LCD Monitors- Using 2 Chauvet ColorPallets
LED Strip Lights DMX Controlled
Rear View
Posted Thu 12 Apr 12 @ 10:48 pm
groovindj
Looks good, David!
Posted Fri 13 Apr 12 @ 4:59 am
Pat_DJ
Nicely done. :)
My only issue is, i would like to be able to handle, 4-6-8 foot table long. With the PVC/ABS Pipe, I could simply add a couple more pipes and it would be done. Also, when putting it down, it could all go in a light stand/speaker stand bag.
Have any images when its folded?
Thanks,
Pat
My only issue is, i would like to be able to handle, 4-6-8 foot table long. With the PVC/ABS Pipe, I could simply add a couple more pipes and it would be done. Also, when putting it down, it could all go in a light stand/speaker stand bag.
Have any images when its folded?
Thanks,
Pat
Posted Fri 13 Apr 12 @ 7:00 am
groovindj
Looks to me like it's made of separate frames slotted together, so to make it wider you'd add frames.
Packed down, it'd just be the size of one frame x height of stack.
Packed down, it'd just be the size of one frame x height of stack.
Posted Fri 13 Apr 12 @ 7:46 am
Blulite
yk23 wrote :
I built one out of a bunch of 2x2 boards, slotted the wood with a table saw, and used and 4x8 Sheets of 4mm Colorplast corrugated plastic($20)
im stealing this idea :) looks great...
Posted Fri 13 Apr 12 @ 12:15 pm
djcity
I love the idea. I want to build one but I want to use PVC pipe for lightweight.
The problem for me is that i'm a DJ, not a carpenter so it's gonna be a task for me. I will want it no wider than the NS6 case so I don't have a lot of extra. Well, maybe a little longer.
The problem for me is that i'm a DJ, not a carpenter so it's gonna be a task for me. I will want it no wider than the NS6 case so I don't have a lot of extra. Well, maybe a little longer.
Posted Fri 13 Apr 12 @ 4:08 pm
Pat_DJ
Exactly what i had in mind djcity.
Using PVC Pipe to build the whole thing.
I've found a great place although not sure if they are shipping, for me, in Canada.
This page has everything for you to get up and running.
http://www.usplastic.com/catalog/default.aspx?catid=581&parentcatid=582
All you really need is a couple of:
- Elbow for Furniture Pipe
- Tee for Furniture Pipe
- 4x 3-Way Elbow for Furniture Pipe (which are not found everywhere)
- Black or White Plastic Furniture Pipe
With all those pieces on hand you can build yourself something great :)
Using PVC Pipe to build the whole thing.
I've found a great place although not sure if they are shipping, for me, in Canada.
This page has everything for you to get up and running.
http://www.usplastic.com/catalog/default.aspx?catid=581&parentcatid=582
All you really need is a couple of:
- Elbow for Furniture Pipe
- Tee for Furniture Pipe
- 4x 3-Way Elbow for Furniture Pipe (which are not found everywhere)
- Black or White Plastic Furniture Pipe
With all those pieces on hand you can build yourself something great :)
Posted Fri 13 Apr 12 @ 8:12 pm
pseft
i love it yk23... i seen it in another post, i think it was whats your set bla blah.
i want to do something like that now
i want to do something like that now
Posted Sat 14 Apr 12 @ 9:36 am
A Man and His Music
Great job David. Is this one piece, or does the sections separate? Can you show the hardware you used?
Posted Sat 14 Apr 12 @ 12:41 pm
dj_julien
Very nice
Posted Tue 17 Apr 12 @ 4:41 pm
yk23

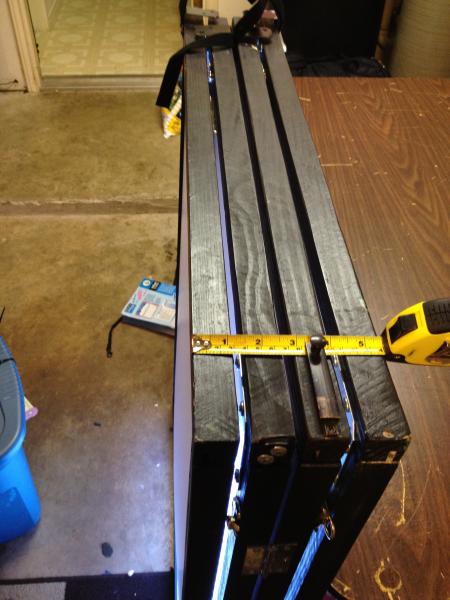

I built it using a table saw to cut, plane the wood and to slot it for the corrugated plastic. The front 2 panels are almost 5 ft wide. I originally made the side limited to a 90 degree angle, but now since changed to 45 degree so I can use it with a larger table. I am using it with a 6ft table right now. It is only held together with corner brackets and hinges for shelving and has some treasure chest type latches to keep the center from folder up. I plan on building another one in the near future, I will take get some more step by step directions. It cost me around $125 for wood and lighting. Took about 20 hours to build it. I think that now I know what Im doing I can do it in 1/2 the time.
-DJ Kavika

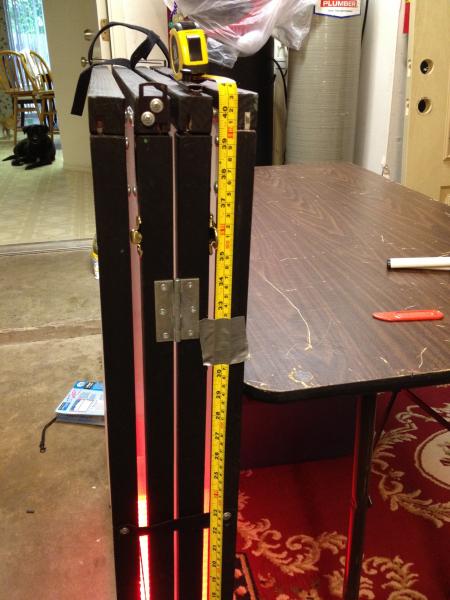

There is a closet locking pin by the measuring tape to help keep it from folding up
-DJ Kavika
There is a closet locking pin by the measuring tape to help keep it from folding up
Posted Tue 17 Apr 12 @ 11:25 pm
1vjdee
love the facade, i was thinking of building one myself as i\'m moving into more mobile work but then i saw this.. http://www.youtube.com/watch?v=jD-8BMuAktM,
costing £750 + vat in the uk it ain\'t cheap but i think it\'s worth it.
costing £750 + vat in the uk it ain\'t cheap but i think it\'s worth it.
Posted Wed 18 Apr 12 @ 12:44 am
djspynn
I used this video myself... http://www.youtube.com/watch?v=pdu3qITsTI8&sns=em.... It works great....
Posted Wed 18 Apr 12 @ 6:39 am
yk23
1vjdee wrote :
love the facade, i was thinking of building one myself as i\'m moving into more mobile work but then i saw this.. http://www.youtube.com/watch?v=jD-8BMuAktM,
costing £750 + vat in the uk it ain\'t cheap but i think it\'s worth it.
costing £750 + vat in the uk it ain\'t cheap but i think it\'s worth it.
I think thats a little bit more durable then mine.
DJ Kavika
Posted Wed 18 Apr 12 @ 10:01 am
triggers100

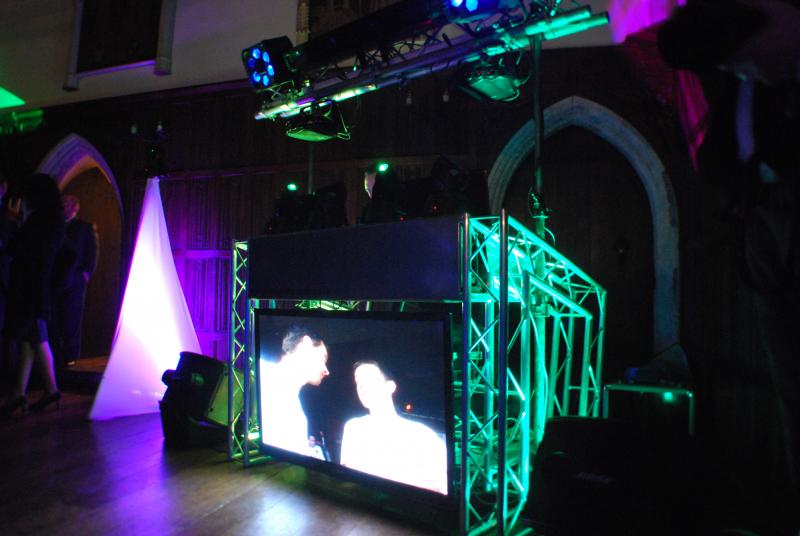

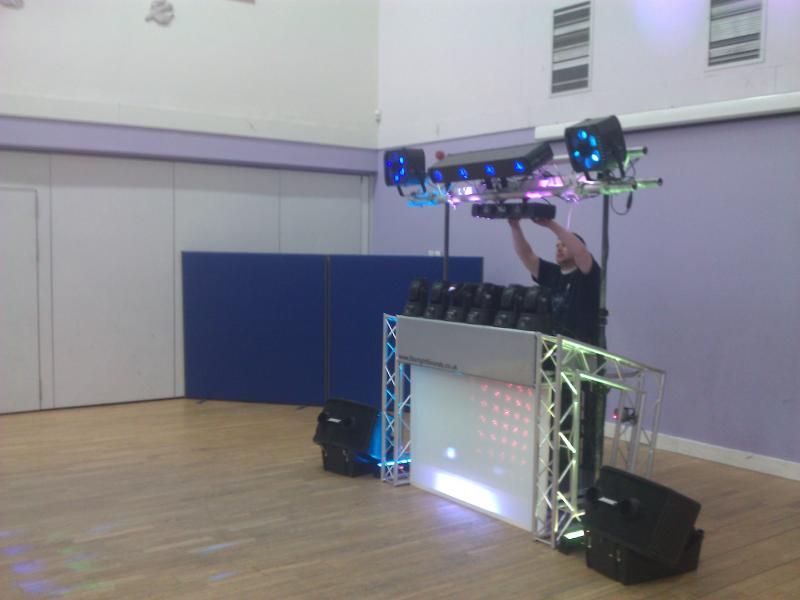

50\" tv with 2 led bars
white cloth with 2 small lasers plus 2 led bars
happy with this setup for this year. :-)
triggs
white cloth with 2 small lasers plus 2 led bars
happy with this setup for this year. :-)
triggs
Posted Wed 18 Apr 12 @ 11:54 am
Nebula 480
That looks so awesome. Way out of my budget tough. Ill just build one out of bamboo.
Posted Wed 18 Apr 12 @ 4:01 pm
LINEMAN55
Here is a facade I made using stretched material for backlighting and composite trim for the frame.Old thread but the unit is still kicking!!
http://www.virtualdj.com/forums/119581/General_Discussion/I_had_Saturday_night_off_so_I_made_this____.html?search=LINEMAN55&page=1.35
http://www.virtualdj.com/forums/119581/General_Discussion/I_had_Saturday_night_off_so_I_made_this____.html?search=LINEMAN55&page=1.35
Posted Thu 19 Apr 12 @ 7:59 am
Pat_DJ
Looking good :)
I just feel like those panels do take a lot of space even when its not assemble compare to a Pipe Facade.

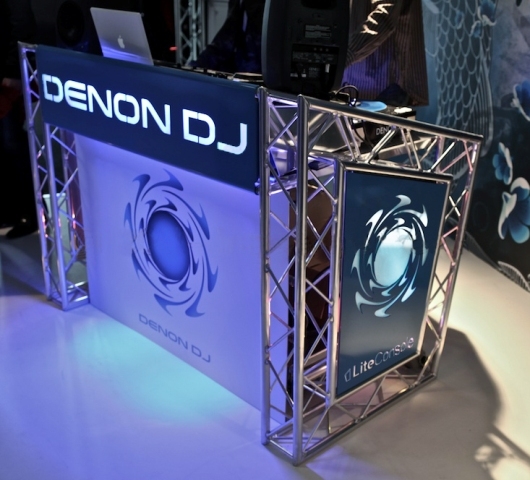

The more i look into the LiteConsole XPRS , the more i like it :) Its a sexy stand :)
I just feel like those panels do take a lot of space even when its not assemble compare to a Pipe Facade.
The more i look into the LiteConsole XPRS , the more i like it :) Its a sexy stand :)
Posted Thu 19 Apr 12 @ 8:16 am
Pat_DJ
Also, the LiteConsole XPRS vs the original LiteConsole is a lot faster to setup and can be folded, which for us Mobile DJ, a big deal :) Anyhow, for me it is :)
Posted Thu 19 Apr 12 @ 10:00 am
