Synq PCM-1
Description

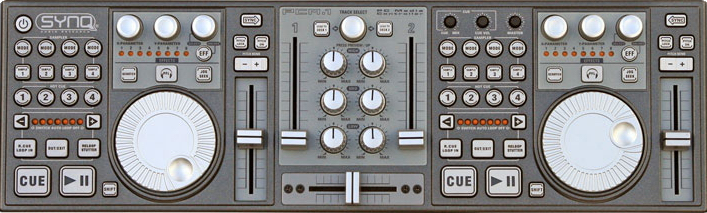

SYNQ's PCM-1 is a multi-functional 'designed in Belgium' PC-Media controller, designed for DJs switching from traditional mixing to hi-tech computer DJing.
Manufacturer's website: http://en.beglec.com/product/340/PCM.1
Specification/features
- Compact 19" 3U rack-mountable USB MIDI compliant DJ controller.
- 58 buttons.
- 7 digital encoders with push-to-select knobs.
- 9 digital knobs for tone + volume control.
- 5 digital faders, including 1 user replaceable crossfader.
- 2 jog wheels for scratching.
- 2 shift-buttons double the functions of each control.
- PCM-1 can be used on any modern laptop or PC (Windows XP/Vista and Mac OSX)
- Built-in ASIO capable 6 channel sound card with headphone output for stand-alone use and separate deck A and B outputs for use with an external DJ mixer.
Firmware
Download and install the latest firmware from http://en.beglec.com/product/340/PCM.1
If you are using Windows XP, the Sync PCM-1 may not work with VirtualDJ if you have not applied this update.
Sound Setup (PC)
For use in a rack with a standard DJ audio mixer:
| Inputs: | None | |
|---|---|---|
| Outputs: | External Mixer | |
| Sound card(s): | ASIO Driver | Synq |
For stand-alone use:
| Inputs: | None | |
|---|---|---|
| Outputs: | Headphones | |
| Sound card(s): | ASIO Driver | Synq |
