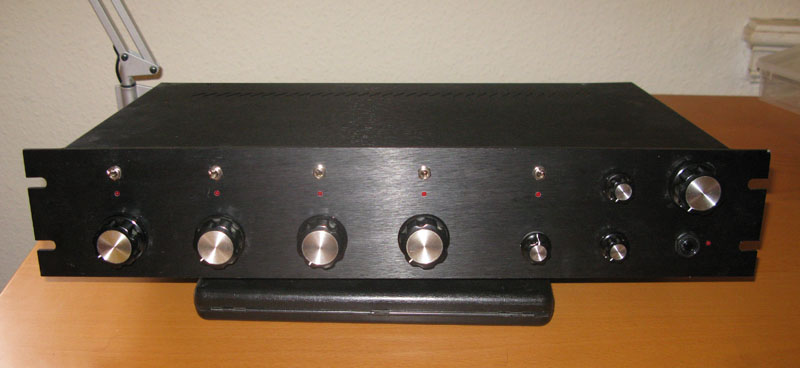

Just finished my new DIY Rotary Mixer.
Functionality:
- Can be used as a 2 Ch - 6 Ch mixer.
- FX Loop.
- Cue - Master Headphone Blend.
- Tape out.
- VU Out.
- Booth Out (unbalanced).
- Master Out (balanced).
Components:
- OP: TL074/TL072, NE5532.
- Caps: ELNA Silmic II, WIMA.
- Resistors: Carbon Film.
- Pots: ALPS RK27
Internal wiring: Mogami
It's done as an DIY project so that others can build it also.

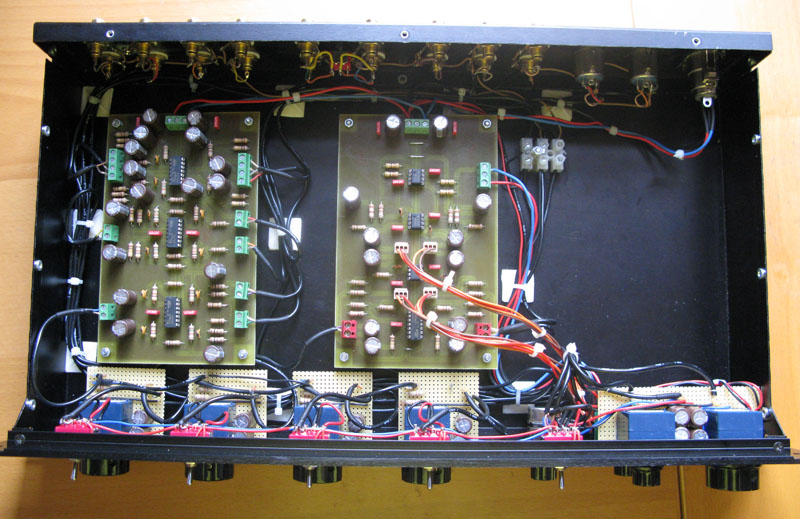

The reason for the veroboards is so that it can be used in any enclosure 19 inch, desktop etc. And use any brand and models of pots and switches.

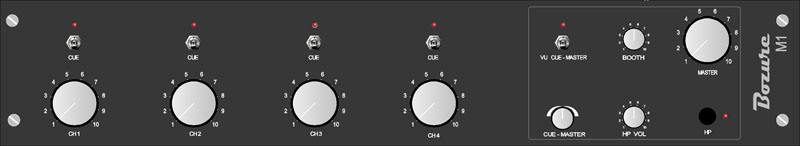

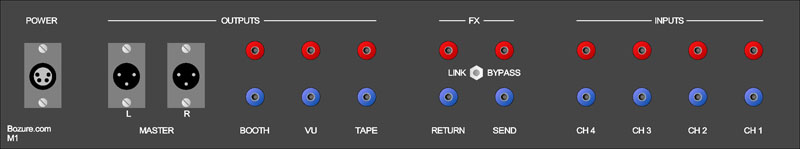

Here is the functionality:
More info about it is on my website and FaceBook page
