I mix with VirtualDJ in Windows and in Mac OS, and I often visit 2 other forums (French speaking) to check the issues met by deejays mixing with DJ Console series: - Hercules DJ Mix Room http://www.herculesdjmixroom.com/en-gb/forum/ - Audiofanzine http://forums.audiofanzine.com/index,idcat,24090,mao,materiel_dj__djing.html As a beta tester for Hercules DJ Console series since DJ Console release 1, I have tested up to now: - DJ Console Mk1 - DJ Console Mk2 - DJ Control MP3 - DJ Console Rmx - DJ Control Steel.

Fri 17 Apr 09 @ 10:00 am

English version

1) Plug your USB Multi-channel sound card to a USB port on your computer.

2) Access to Vista configuration menus for the sound
Once connected, open the Playback Devices configuration windows:
- Right click on Mixer Icon in the windows task bar
- Select Playback Devices command in the Menu


3) Activate the 5.1 mode in Vista
- Select the Speakers 2- USB Audio device and click on the Configure button:

- The Speaker Setup wizard lets you set sound card:

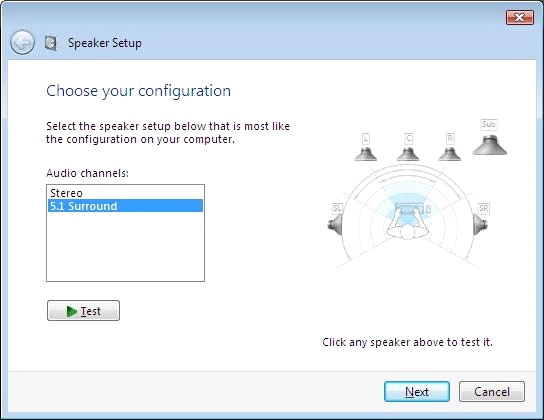

- In the field called Audio Channel, choose the setting 5.1 Surround and click on Next button:

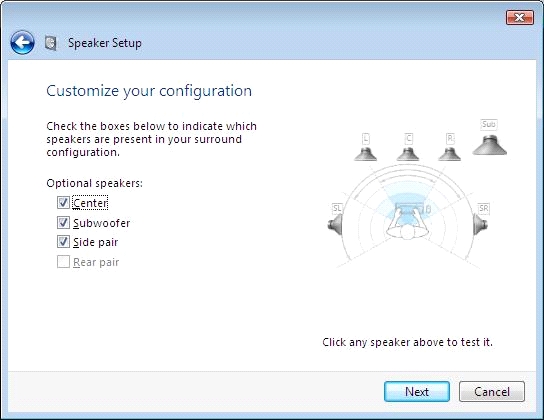

- Activate the check boxes Center / Subwoofer / Side pair and click on Next button:

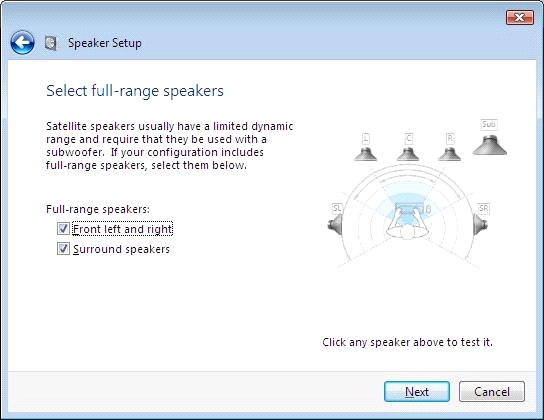

- As Full Range Speakers selection, select Front left and right and Surround speakers and click on Next button:

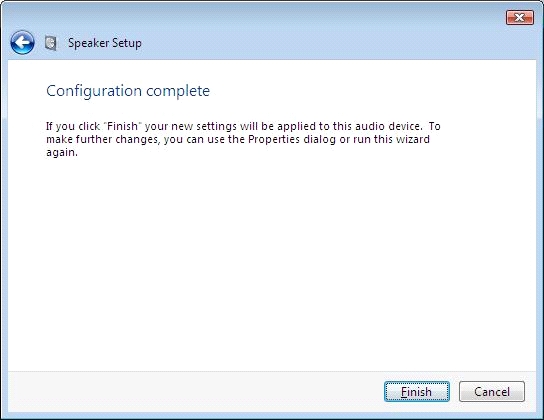

And your USB Multi-channel Sound Card is configuration in 5.1 mode is complete for Vista.


4) Configure VirtualDJ for the 5.1 sound board

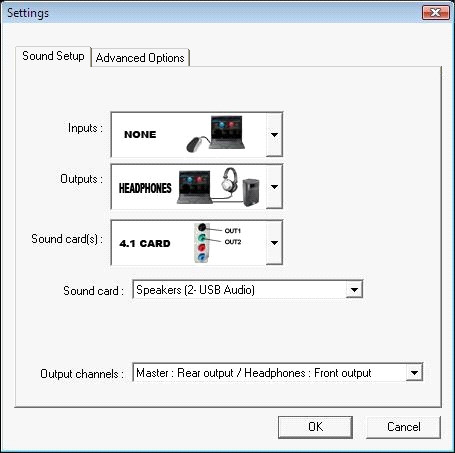

- Run Virtual DJ and click on the MORE button to get the settings menu.

Then set in the Audio Configuration tab set the following configuration:

- Inputs : None
- Outputs : Headphones
- Sound card(s) : 4.1 CARD
- Sound card : Speakers (2-USB Audio)
- Output channels: Master : Rear output / Headphone : Front output
and on click on OK.

You can now connect
- your headphones on the master output (output 1-2 or output Headphones on Muse Pocket/Muse Pocket Lt)
- your speakers on the output 5-6.[
