Topic: Newbie question about RCA cables - Page: 1
I have a gig in a couple of weeks, and since this isn't something I do very often, I don't want to get there and not know everything I should know. My first question is about sound setup:
- I mix at home with my controller, and I plug my headphones to the controller and the controller to my computer through USB. No speakers, just headphones. My current sound settings are Master - Mixtrack Pro II - channels 1 & 2 / headphones - Mixtrack Pro II - channels 3 & 4. Output: Speaker + headphones; Card: Numark Mixtrack Pro II. In order to play live, do these settings change? I'll probably be connecting my controller to the gig's main mixer with RCA cables, which brings me to my second question:
- What are the proper cables to do this? A few years ago I had a few gigs at a club and I basically had an RCA cable connecting my controller to the mixer, Left & Right (white and red cable). Will this be enough or is something else more appropriate?
Posted Wed 17 May 17 @ 11:59 pm
Thelema wrote :
I mix at home with my controller, and I plug my headphones to the controller and the controller to my computer through USB. No speakers, just headphones. My current sound settings are Master - Mixtrack Pro II - channels 1 & 2 / headphones - Mixtrack Pro II - channels 3 & 4. Output: Speaker + headphones; Card: Numark Mixtrack Pro II. In order to play live, do these settings change?
It looks like you currently send the finished "master mix" to your headphones, which leaves you without a headphone "preview" option (sometimes called curing, sometimes called PFL)
As in: You get the finished mix in your headphones?
Is that true?
In that case you'll probably want to change that. If you click the button under "card" in the audio options that says Mixtrack Pro II, this should automatically get set "the normal way"
But if you have never previewed in headphones before, I recommend you attach someting to master put, like a small pc speaker, and practice having different output in headphones and master out beforehand
Thelema wrote :
What are the proper cables to do this? A few years ago I had a few gigs at a club and I basically had an RCA cable connecting my controller to the mixer, Left & Right (white and red cable). Will this be enough or is something else more appropriate?
If the distance is short that will be fine
Posted Thu 18 May 17 @ 9:08 am
No, I get PFL (I just turn the knob and select the deck I want to pre-listen).
Posted Thu 18 May 17 @ 12:49 pm
i wouldn't just assume you can connect RCA cables to the house mixer, id find out previously if you need XLR, TRS or RCA. Nothing worse than getting there and finding out you have the wrong cables.
If this is a hobby for you call or go there and find out what mixer the house uses. If this is something you do on the regular carrying the the most common cables (from my experience, XLR to TRS and XLR to XLR male/female)
monoprice.com has every cable you can shake a stick at with very good prices to boot.
Posted Fri 19 May 17 @ 6:42 am
Posted Sat 20 May 17 @ 1:40 am
Posted Thu 01 Jun 17 @ 7:28 pm
1/4 inch cables
if your decks do not have all these connection options you would need suitable converters to each option
Posted Thu 01 Jun 17 @ 8:34 pm
Posted Fri 02 Jun 17 @ 1:17 am
but there is no sound anywhere.except for my headphones. What am I doing wrong? When I change "master" to "Speakers", the sound is completely muffled and seems to only be coming from the subwoofer.
Posted Mon 19 Jun 17 @ 9:36 pm
I might install the Numark asio audio drivers for this unit, that's if they exist. You're using the windows audio drivers at the moment.
It's nothing to do with vdj.
Your speaker system needs to be able to take the full range signal (the master) and split it into two parts, the low frequencies and those above. Somewhere there needs to be a crossover which performs this task. Often a crossover is built into a speaker, or amp. Otherwise a separate crossover unit is needed.
Posted Mon 19 Jun 17 @ 11:29 pm
Should also mention: I was testing this on a desktop, with the speakers connected to the computer/extension cord and the Left/Right outputs going straight through to the controller. Audio was fine on headphones, muffled on subwoofer (speakers were silent).
Posted Mon 19 Jun 17 @ 11:59 pm
Whilst using the house mixer just connect the main controller rca outputs to a mixer stereo input channel. 1/4" jack to rca adapters should be all that is needed and they are very cheap. Every mixer I've ever seen will accept 1/4" jack inputs. See http://www.ebay.co.uk/itm/Phono-RCA-to-6-35mm-MONO-Jack-Audio-Cable-Adapter-Converter-6-3mm-1-4-Inch-Lead-/291012006226?hash=item43c1aad152:g:z7IAAOxy4t1SfTEX
You have provided insufficient information about the speaker system to which you wish to connect a bass bin. What kind of crossover does it have?
Posted Tue 20 Jun 17 @ 7:35 am

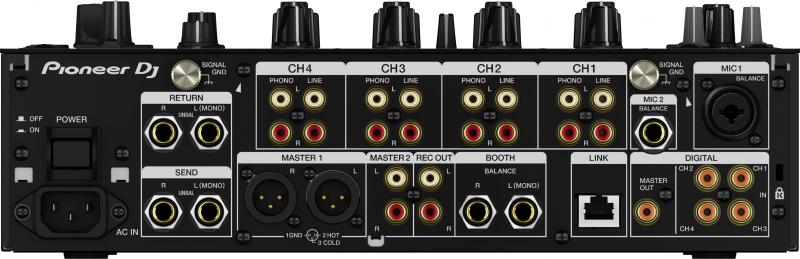

Even though ONE mixer would be enough to say otherwise, here we go:
Mind you that the RETURN 1/4 jack inputs are to be used in conjunction with the effect chain of the mixer (in other words you need to configure the FX Send/Return chain properly for them to work as "inputs" and mix their audio with the master bus).

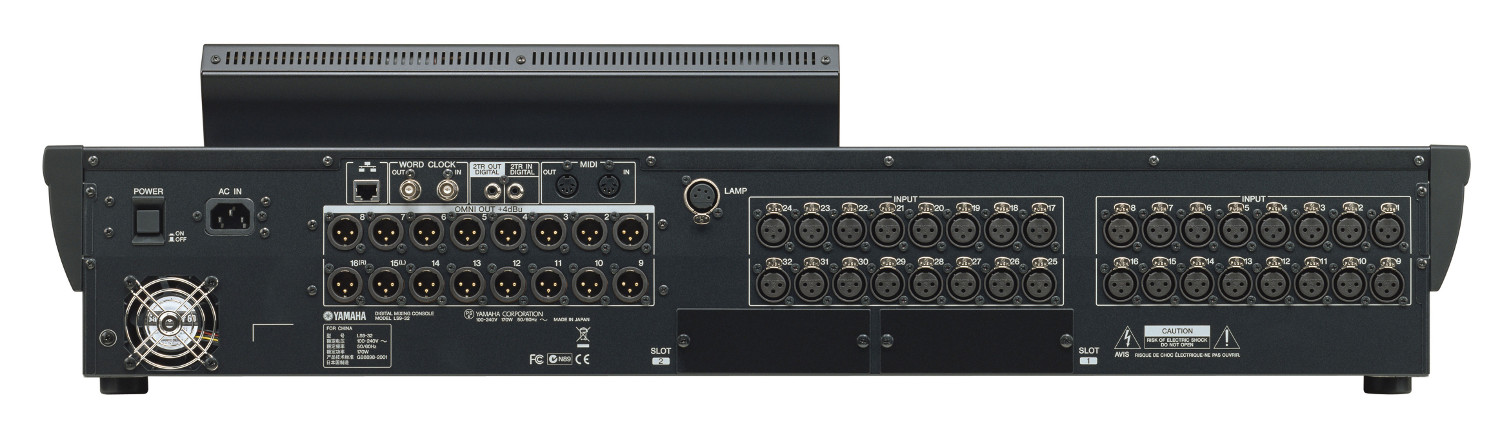

Finally let's assume a Mixing console instead of a Dj Mixer:
Posted Tue 20 Jun 17 @ 1:23 pm
Posted Tue 20 Jun 17 @ 1:54 pm
Now for the settings: currently I have both master and headphones set to Mixtrack Pro II (WASAPI). Turning the Cue Mix knob turns sound off but doesn't allow me to pre-listen, it just goes up or down and I can only hear it coming from the deck where it's playing. However, I can't hear anything on my headphones if I turn the deck volume down, and I'm supposed to hear it if I want to beatmatch properly. The Cue Gain knob turns the volume up or down on my headphones, but does nothing for the sound coming from the speakers.
This is probably very basic, but I'm just now trying to get around these things.
Posted Tue 20 Jun 17 @ 6:44 pm
You used the Y connector as a kind of very crude crossover..depending on your speaker system there might be a proper built in crossover?
Posted Tue 20 Jun 17 @ 9:41 pm
So, to wrap it up, when playing live, what exactly should the audio settings be on VDJ?
Posted Wed 21 Jun 17 @ 3:51 am
The vdj settings in your photo are correct. Just connect the controller rca outputs to the venue mixer stereo channel. Their system will most likely have a limiter to protect the speakers which will set your maximum volume, but you can still clip the signal..so no red lights on any of your meters!
Posted Wed 21 Jun 17 @ 10:29 am
This is the type of thing you're often likely to encounter when using a venue pa system, maybe just a little bit bigger http://www.ebay.co.uk/itm/Yamaha-MG124CX-12-channel-mixer-very-good-condition-little-used-/302332160140?hash=item466466a88c:g:~JgAAOSwcgNZLCsE
This is real world.
Venues don't like spending money..hm most are very frugal.
Posted Wed 21 Jun 17 @ 10:57 am
bigron1 wrote :
Here we go again..I don't think the Phantom lives in the real world. Look few venues will have a Yamaha LS9 - 16 https://www.thomann.de/gb/yamaha_ls_916.htm?glp=1&gclid=EAIaIQobChMIxoj_3uDO1AIVnqntCh12VQnTEAQYAiABEgJ8XvD_BwE. They cost over £4000.
Yes, I live in outer space! :)
That being said, this mixing console is just an EXAMPLE to prove that NOT ALL mixing consoles / mixers have 1/4 Jack inputs.
The most common input plug on DJ Mixers is RCA, and on Mixing Consoles is XLR, or XLR and 1/4 jack combo.
Posted Wed 21 Jun 17 @ 4:11 pm
